CoRayVac® low intensity infrared radiant tube heaters provide a fully-engineered design and layout option for complete building comfort. Each application receives a customized infrared heating system featuring modulating burners-in-series. Burners-in series allows for maximum heat coverage in the space, minimizing building exhaust penetrations. With a range of Btu/h inputs available, burners can be placed 10ft – 70ft apart for uniform heat coverage. Designed as a high efficiency condensing system, more heat from the system is utilized within the space. Lower exhaust temperatures provide energy and fuel savings, reducing the cost of high heating bills.
CORAYVAC MODULATING HEATING CONTROL
The CoRayVac Modulating Heating control provides additional fuel savings by measuring outdoor air temperatures to match system input to the building heat-loss. The control then modulates the system firing rate continuously (not staged) between 60% and 100% of total designed firing rate. It is capable of operating up to two heating systems and four heating zones. It provides total heating system management through touchscreen, off-site connectivity, or pre-programmed thermostats. The panels feature durable enclosures for increased longevity.

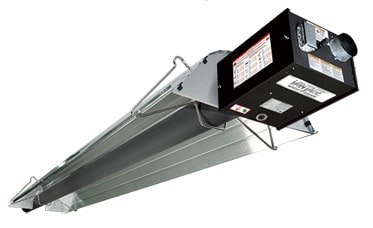

The Roberts Gordon Vantage CTH2V-Series infrared tube heater sets the standard for single stage unitary heaters with its nearly 40 year history of quality and reliability. The updated CTH2V’s design features a sealed burner with an enclosed combustion blower. Combustion air is separated from the electrical compartment to minimize the controls exposure to dirt and moisture. Direct spark ignition provides a low amp draw to allow more CTH2V heaters to be tied into a single circuit. Other notable features include: External LED “burner on” light, ignition module diagnostic light for ease of troubleshooting, external flame viewer window, and an external low voltage thermostat connection that includes an extra terminal that will power a low voltage thermostat. Additionally, setting Roberts Gordon® apart from all others, a three-year limited warranty is included with all available low intensity infrared tube heaters.

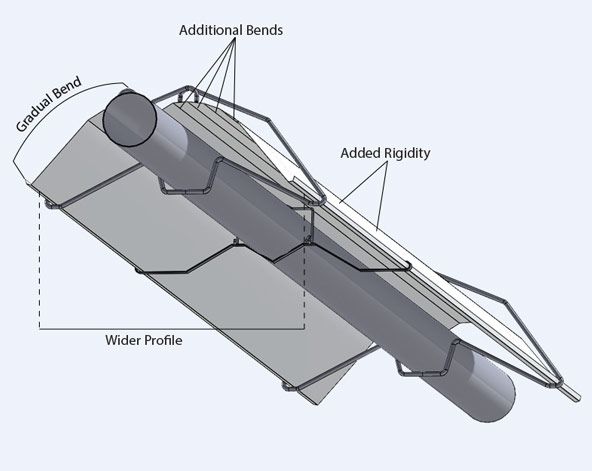

High Efficiency Reflector
Our re-designed and re-engineered the reflector! The high efficiency reflector has a wider heat pattern resulting in additional heat coverage with less BTU’s required. Additional reflector bends placed on a gradually curved parabolic shape decrease infrared tube heat loss. Overall, the high efficiency reflector has a higher measured radiant efficiency, as tested per the AHRI Standard 1330 released early 2015. The high efficiency reflector can be added to or replaced on any existing Roberts Gordon infrared heating systems to maximize heater efficiency and reduce fuel cost.
Entek has an extensive background with Roberts Gordon Radiant Tube Heaters.
We are a long-time manufacturer’s representative for Roberts Gordon.Our territory includes all of New Jersey, Eastern Pennsylvania, and the Hudson Valley of New York.
- Assist in troubleshooting
- Work with contractors and end users to ensure proper product placement
- Work with engineers on project layouts
- Provide CAD drawings of design layouts for the Roberts Gordon line radiant equipment
- Provide replacement parts and equipment for new installation and retrofits.
We proudly offer the following three product lines:
About Infrared Radiant Tube Heating
Low Intensity Infrared heats similar to the sun heating the earth, gently warming people and objects with radiant energy. It provides quiet, draft free heating using radiant energy to heat without the need for large warm air fans to move heat around the building. Infrared energy is absorbed by objects and then released back into the space through convection, allowing for a rapid heat recovery. Infrared tube heaters are easy to install indoors or outdoors, operate efficiently, and are extremely durable and long lasting. Building thermostat temperatures can be set lower due to equivalent perceived comfort at lower air temperatures. Radiant tube heaters can reduce energy bills up to 50% compared to alternative heating systems.
About Roberts Gordon
In the late 1950’s, Roberts-Gordon pioneered the concept of gas-fired infrared radiant tube heating which simulates the direct rays of the sun. This principle results in substantial fuel savings. Roberts Gordon introduced the first commercially produced gas-fired, low-intensity infrared product: Co Ray Vac. They were also the first company to patent a fully modulating infrared system. The UltraVac system was a control that allowed building owners to modulate burner input rate with outdoor air temperature in order to match the heating system’s input to the building’s heating requirement.
